SKYBIZ API — Price Matrix Module

Price Matrix

The Price Matrix module allows you to retrieve pricing matrix records from your SKYBIZ account. This module is read only — no create action is available.

Endpoint: /apiv2/modules/price_matrix.php

Required Permission: Price Matrix — Read

Read Price Matrix

Retrieves price matrix records modified within the given date range, ordered by ItemCode and RunNo. Only active records (Status = '1') are returned.

Base Request Structure

{
  "api_key": "your-api-key",
  "api_secret": "your-api-secret",
  "action": "read",
  "date_from": "YYYY-MM-DD",
  "date_to": "YYYY-MM-DD",
  "item_code": "",
  "cus_code": ""
}

Request Parameters

Date Rules

• Format must be YYYY-MM-DD — e.g. "2026-04-01"
• Maximum range is 31 days
• date_from cannot be after date_to

Available Fields (Read Only)

The Price Matrix module returns all fields. Field filtering is not supported for this module.

Example 1 — Get All Price Matrix Records (All Fields)

This request returns all price matrix records modified between April 1, 2026 and April 30, 2026.

Request

{
  "api_key": "your-api-key",
  "api_secret": "your-api-secret",
  "action": "read",
  "date_from": "2026-04-01",
  "date_to": "2026-04-30",
  "item_code": "",
  "cus_code": ""
}

Sample Code for making an API READ request using php

<?php
header('Content-Type: application/json');

// ============================================================
// STEP 1: CONFIGURATION
// ============================================================

$API_KEY = "your-api-key";
$API_SECRET = "your-api-secret";
$ACTION = "read";

// Date range (required for all endpoints, max 31 days)
$DATE_FROM = "2026-04-01";
$DATE_TO = "2026-04-30";

// ============================================================
// STEP 2: ENDPOINT
// ============================================================

$BASE_URL = "https://domain-name/01/clientportal/apiv2/modules"; //(replace it with your skybiz domain name url)
$ENDPOINT = "price_matrix.php";

// ============================================================
// STEP 3: REQUEST PARAMETERS
// ============================================================

$requestParams = [
    "date_from" => $DATE_FROM,
    "date_to" => $DATE_TO,
    "item_code" => "", // Optional: filter by item code
    "cus_code" => ""   // Optional: filter by customer code
];

// ============================================================
// STEP 4: BUILD PAYLOAD
// ============================================================

$payload = array_merge(
    [
        "api_key" => $API_KEY,
        "api_secret" => $API_SECRET,
        "action" => $ACTION
    ],
    $requestParams
);

// ============================================================
// STEP 5: SEND REQUEST
// ============================================================

$url = rtrim($BASE_URL, '/') . '/' . ltrim($ENDPOINT, '/');

$ch = curl_init($url);

curl_setopt_array($ch, [
    CURLOPT_RETURNTRANSFER => true,
    CURLOPT_POST => true,
    CURLOPT_POSTFIELDS => http_build_query($payload),
    CURLOPT_TIMEOUT => 30,
]);

$response = curl_exec($ch);

// ============================================================
// STEP 6: HANDLE CURL ERROR
// ============================================================

if ($response === false) {
    echo json_encode([
        "status" => "error",
        "timestamp" => date("c"),
        "request_id" => uniqid("req_"),
        "message" => curl_error($ch)
    ], JSON_PRETTY_PRINT);
    curl_close($ch);
    exit;
}

$httpStatus = curl_getinfo($ch, CURLINFO_HTTP_CODE);
curl_close($ch);

// ============================================================
// STEP 7: DECODE RESPONSE
// ============================================================

$result = json_decode($response, true);

if (!$result) {
    echo json_encode([
        "status" => "error",
        "timestamp" => date("c"),
        "request_id" => uniqid("req_"),
        "message" => "Invalid JSON from API",
        "raw_response" => $response
    ], JSON_PRETTY_PRINT);
    exit;
}

// ============================================================
// STEP 8: RETURN CLEAN JSON FORMAT
// ============================================================

echo json_encode([
    "status" => $result['status'] ?? "error",
    "timestamp" => date("c"),
    "request_id" => $result['request_id'] ?? uniqid("req_"),
    "data" => $result['data'] ?? null,
    "message" => $result['message'] ?? null
], JSON_PRETTY_PRINT);

Response (Success)

{
  "status": "response",
  "timestamp": "2026-04-30T04:07:04+00:00",
  "request_id": "req_69f2d56891e57",
  "data": {
    "requested_by": "your-api-key",
    "mode": "2",
    "date_range": {
      "from": "2026-04-01",
      "to": "2026-04-30",
      "days": 30
    },
    "total_returned": 2,
    "data": [
      {
        "RunNo": 1001,
        "ItemCode": "ITEM001",
        "Description": "Volume Discount - ITEM001",
        "CusCode": "",
        "Qty": 10,
        "Y1": 95.00,
        "Status": "1",
        "DateTimeModify": "2026-04-15 10:30:00"
      },
      {
        "RunNo": 1002,
        "ItemCode": "ITEM002",
        "Description": "Customer Special - CUST001",
        "CusCode": "CUST001",
        "Qty": 5,
        "Y1": 90.00,
        "Status": "1",
        "DateTimeModify": "2026-04-20 14:45:00"
      }
    ]
  }
}

Example 2 — Filter by Item Code

This request returns only price matrix records for item code ITEM001.

Request

{
  "api_key": "your-api-key",
  "api_secret": "your-api-secret",
  "action": "read",
  "date_from": "2026-04-01",
  "date_to": "2026-04-30",
  "item_code": "ITEM001",
  "cus_code": ""
}

Sample Code Configuration

$requestParams = [
    "date_from" => "2026-04-01",
    "date_to" => "2026-04-30",
    "item_code" => "ITEM001",
    "cus_code" => ""
];

Example 3 — Filter by Customer Code

This request returns only price matrix records for customer code CUST001.

Request

{
  "api_key": "your-api-key",
  "api_secret": "your-api-secret",
  "action": "read",
  "date_from": "2026-04-01",
  "date_to": "2026-04-30",
  "item_code": "",
  "cus_code": "CUST001"
}

Sample Code Configuration

$requestParams = [
    "date_from" => "2026-04-01",
    "date_to" => "2026-04-30",
    "item_code" => "",
    "cus_code" => "CUST001"
];

Example 4 — Filter by Both Item Code and Customer Code

This request returns only price matrix records for item code ITEM001 AND customer code CUST001.

Request

{
  "api_key": "your-api-key",
  "api_secret": "your-api-secret",
  "action": "read",
  "date_from": "2026-04-01",
  "date_to": "2026-04-30",
  "item_code": "ITEM001",
  "cus_code": "CUST001"
}

Sample Code Configuration

$requestParams = [
    "date_from" => "2026-04-01",
    "date_to" => "2026-04-30",
    "item_code" => "ITEM001",
    "cus_code" => "CUST001"
];

Postman Steps — READ Request

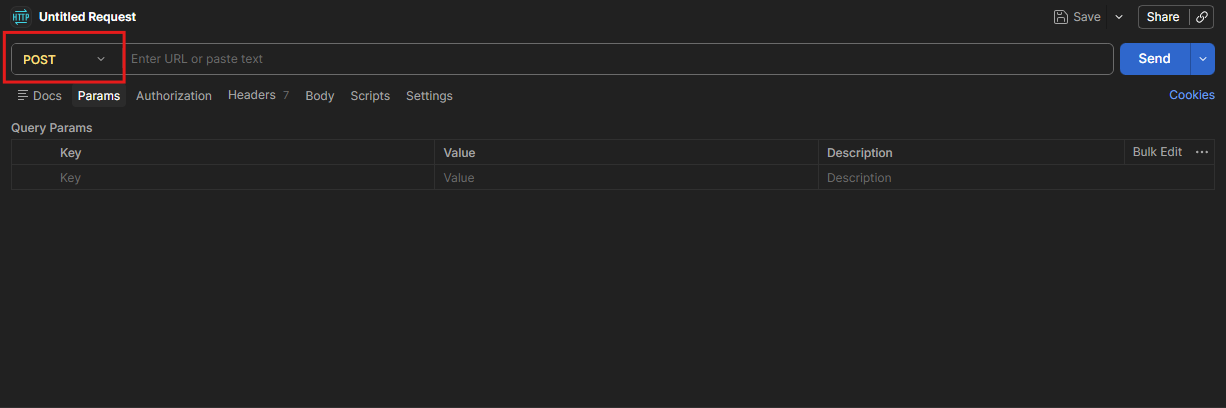

1. Set method to POST

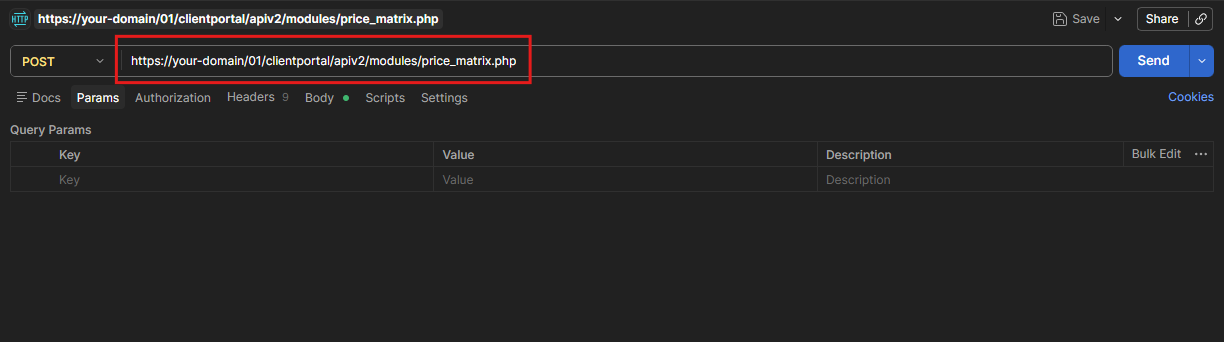

2. Enter URL: https://your-domain/01/clientportal/apiv2/modules/price_matrix.php

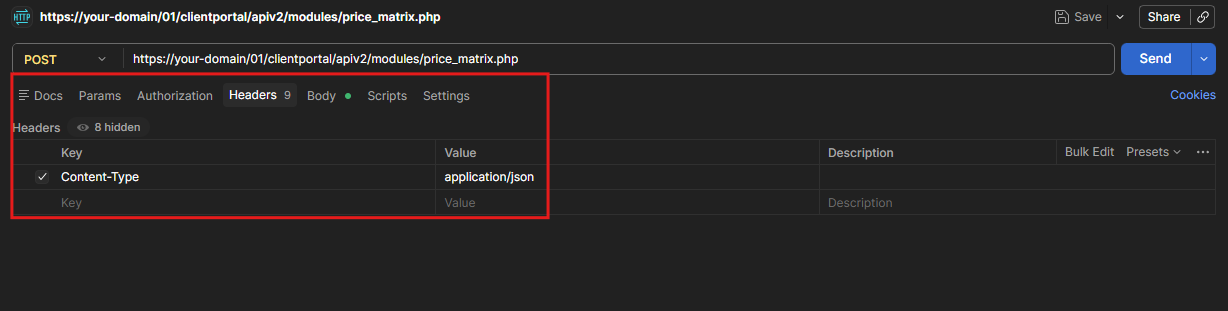

3. Set header: Content-Type: application/json

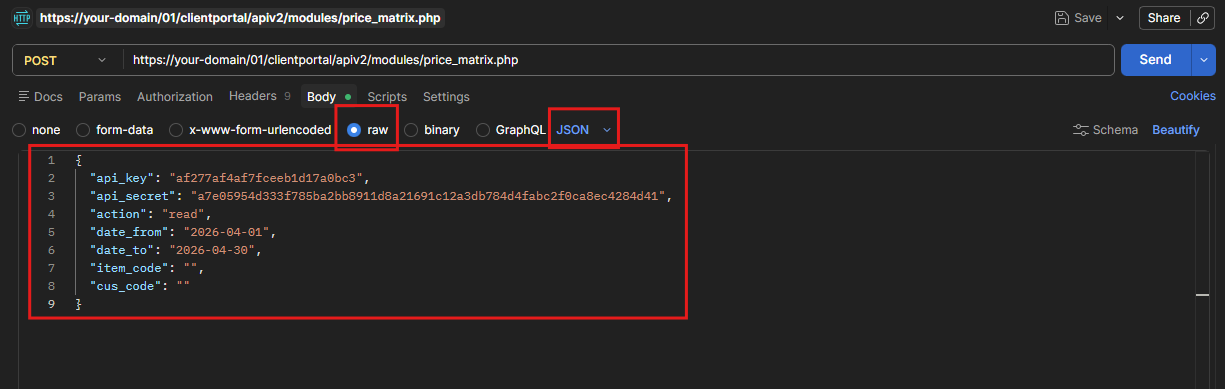

4. Under Body, select raw and format JSON

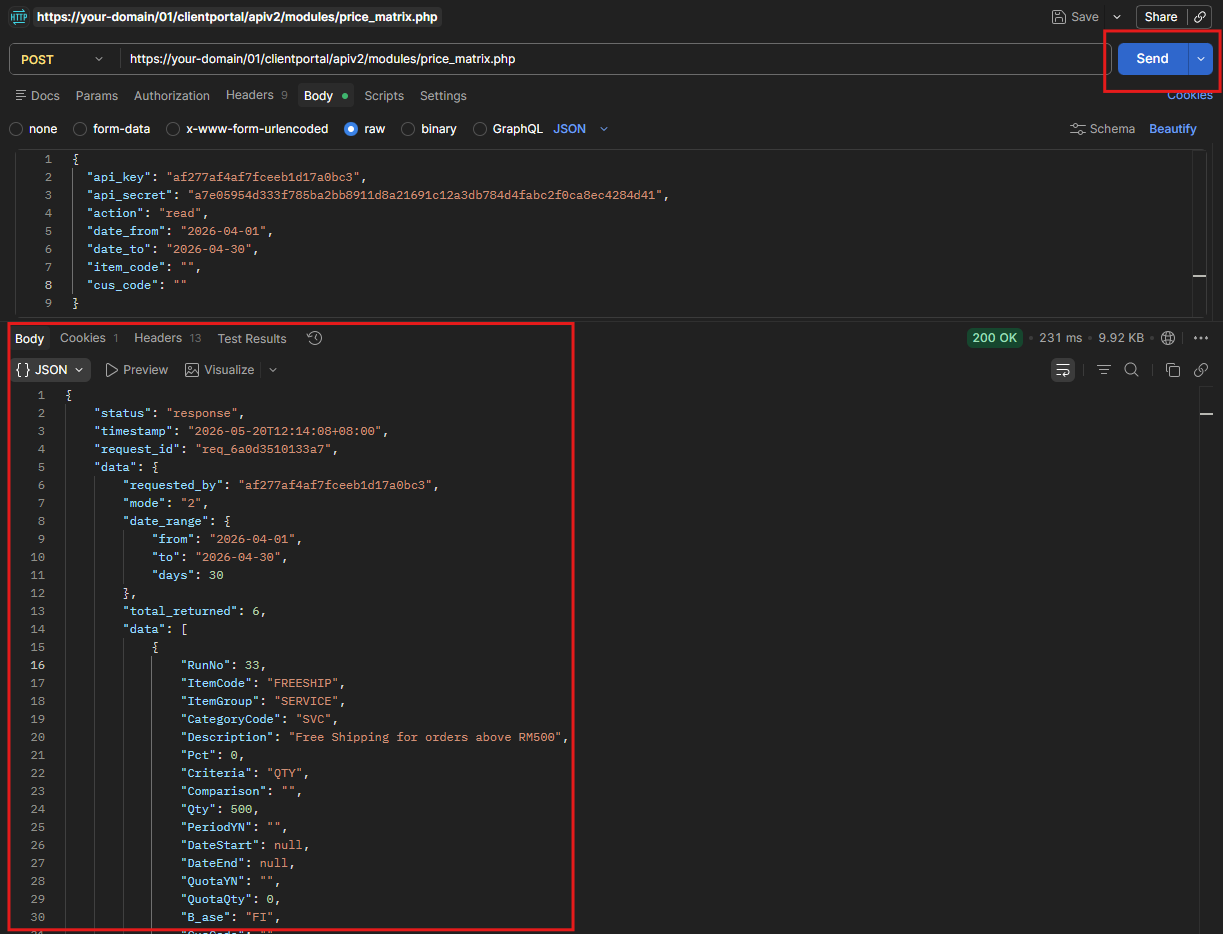

5. Paste your request payload and click Send

Error Responses

Missing Date Range

{
  "status": "error",
  "timestamp": "2026-04-07T10:46:15+08:00",
  "request_id": "req_6612f3b9c21a7",
  "message": "date_from and date_to are required"
}

Invalid Date Format

{
  "status": "error",
  "timestamp": "2026-04-07T10:46:15+08:00",
  "request_id": "req_6612f3b9c21a7",
  "message": "Invalid date format. Use YYYY-MM-DD format."
}

Date Range Exceeds 31 Days

{
  "status": "error",
  "timestamp": "2026-04-07T10:46:15+08:00",
  "request_id": "req_6612f3b9c21a7",
  "message": "Date range cannot exceed 31 days."
}

No Read Permission

{
  "status": "error",
  "timestamp": "2026-04-07T10:46:15+08:00",
  "request_id": "req_6612f3b9c21a7",
  "message": "Price Matrix read permission denied"
}

Common Errors — Price Matrix Module
